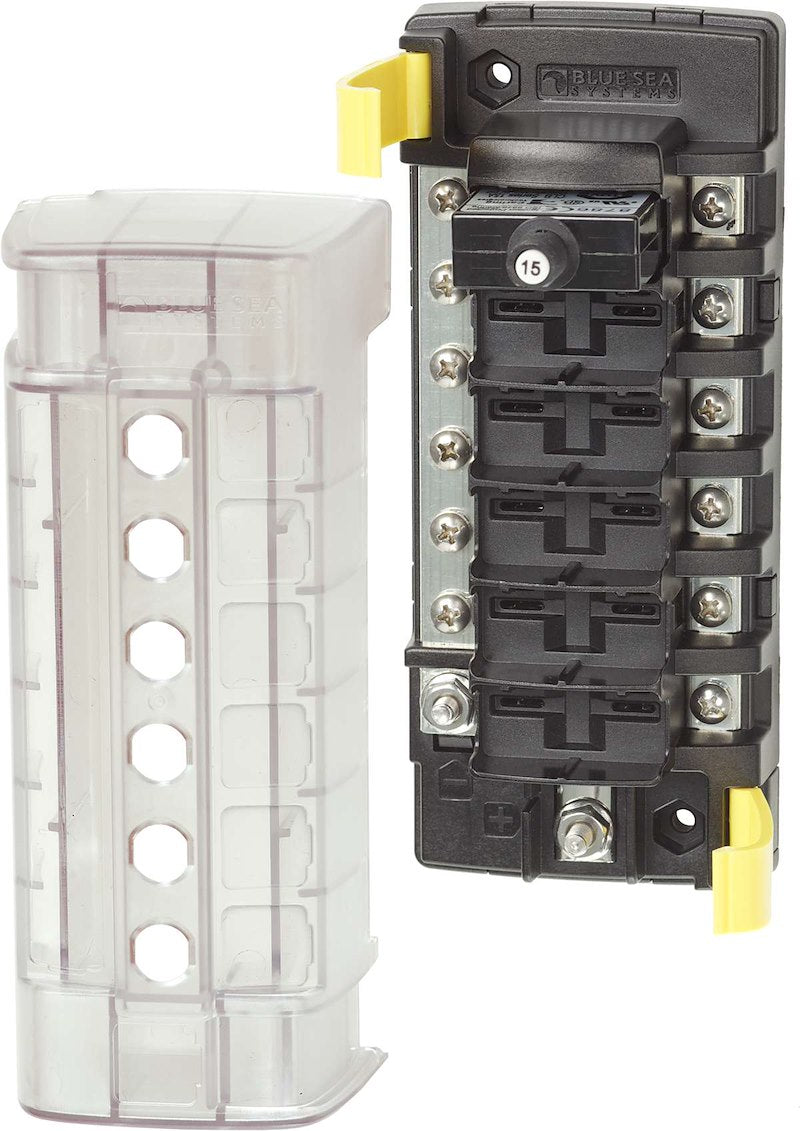

Blue Sea 5052BSS Circuit Breaker Block; 6 Position Common Source With Ground Base; 32 Amp Per Circuit/ 100 Amp Per Block Maximum Operating Current; 32 Volt DC Maximum Operating Voltage
$101.79
Attributes
- Number Of Circuits: 6 Position Common Source With Ground Base
- Ampere Rating: 32 Amp Per Circuit/ 100 Amp Per Block
- Voltage Rating: 32 Volt DC
- Operating Temperature: -10 Degree Celsius To 60 Degree Celsius
- Mounting Type: Snap-In
- With Insulating Cover: Yes
Product Description
The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the Compact Design, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.
Features & Benefits
- Quick Connect Clips Allow Circuit Breakers To Snap Easily Into Place
- Tin-Plated Copper Busses And Screw Terminals
- Clear Insulating Cover With Square Format Label Recesses, Satisfies ABYC/USCG Insulation Requirements
- Easy To Open Clip On Cover
- Breakouts Allow Wire Access In Two Directions
- Accepts Ring Terminals
- Optional Push Button Waterproof Boots Or Dress Nuts Can Be Installed Over Cover
- Easy To Install
- No Supplier Warranty
